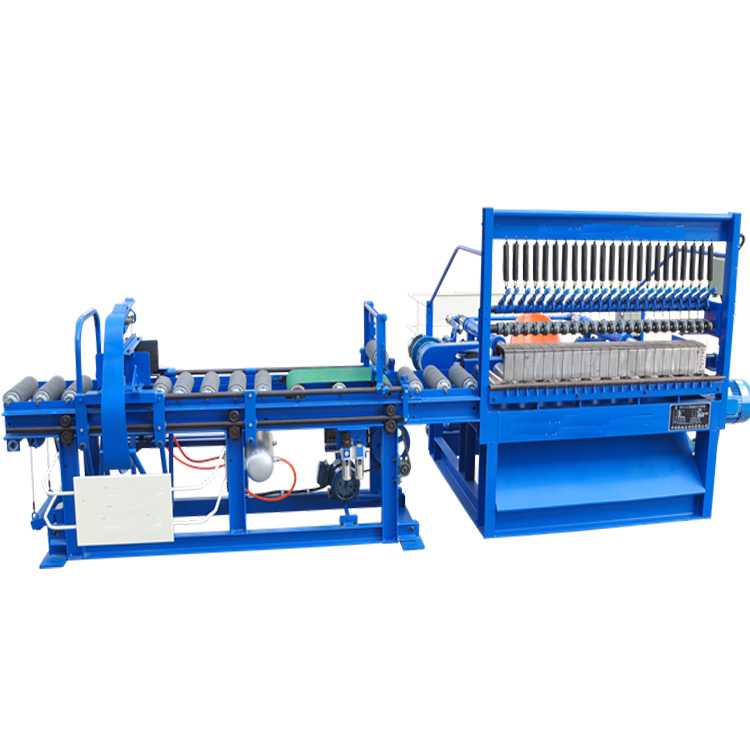

Program control Auto brick cutting machine
Model:QTQD+QPA2-(height X thickness X pieces)-(power) It consists of program control and air promotion slitter and light cutter It's suitable for the product line of small scale,soft plasticity and s...
Description
Parameters
FAQ
Video
Model:QTQD+QPA2-(height X thickness X pieces)-(power) It consists of program control and air promotion slitter and light cutter It's suitable for the product line of small scale,soft plasticity and semi hard plasticity. To realize automatic and semi-automatic operation.
Structural characteristics: 1.) Automatic equipment of defending leaning:Never cut obliquely and no need to adjust. 2.) Stainless steel cylinder table-board:mud strips reaches the right place automatically; accurate positioning to avoid wasting the mud; saving oil 70%-100% than the normal table-board. 3.) Stainless steel push board: wear resistant, the working life is longer 3 times than the normal one. 4.) Oriented angle and Oriented arc: high accuracy to make the steel wires go into groove, reduce 70% broken steel wires averagely. 5.) High-abrasive material craft: Leader is hard chrome plate and the compound oriented bearing. Its resistance is small and its working life is long. 6.) Buffer power accumulator: absorb return impact, and translate it to push power. 7.) High strength, large thrust: mainly usages for the mud strip whose original material is coal gangue and shale.It’s suitable for different soft and hard plasticity mud strips: it’s saving oil When usages for high sand content mud or other inferior mud; if the mud strips is very soft, the expansion table-board should be intense in advance. You can reffer the Parmeters for more details about Hammer Crusher.
Maximum incision rate: 20 ts/min Maximum length of mud strips:1254mm
Maximum incision height: 250mm(specially appointed)
Maximum incision rate: 20 ts/min Maximum length of mud strips:1254mm
Maximum incision height: 250mm(specially appointed)
Expansioncylinderpower
0.55kw
standardconfiguration
Cutterpower
Particle,semihardplasticity (coalgangue,shale)
5.5kw
Particle,hardplasticity (coalgangue,shale)
7.5kw
Specialorders
Program control Auto brick cutting machine Video:
